Leonardus: SOF Class Reference

Semantic Object File. More...

#include <sof.h>

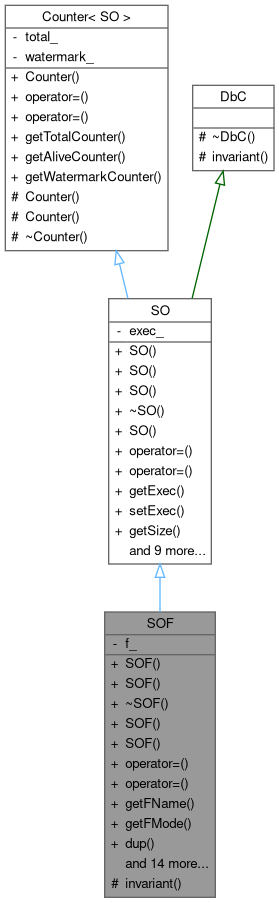

Inheritance diagram for SOF:

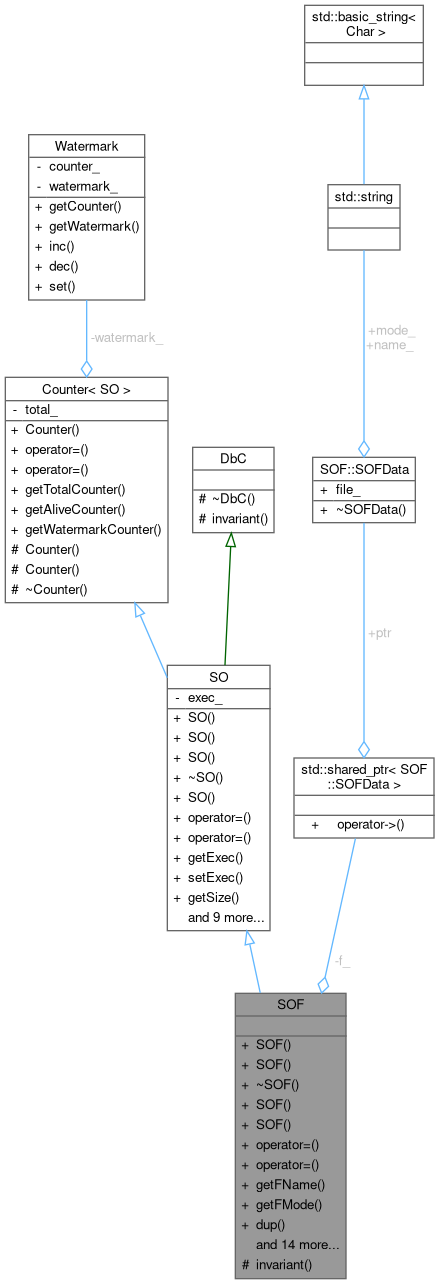

Collaboration diagram for SOF:

Classes
struct	SOFData
	Semantic Object File - data member class. More...

Public Member Functions
	SOF (const std::string &p_name, const std::string &p_mode)
	Ctor from a name.

	SOF (const SOF &p_other)
	Copy ctor.

	~SOF () override
	Dtor.

	SOF (SOF &&)=delete

SOF &	operator= (const SOF &)=delete

SOF &	operator= (SOF &&)=delete

std::string	getFName () const
	Returns the file name.

std::string	getFMode () const
	Returns the file mode.

SOF *	dup () const override
	Creates a new instance as copy following the red book definition.

std::string	opequal () const override
	String representation of object for operators '=', 'cvs' and 'stack'.

std::string	opequalequal () const override
	String representation for operators '==' and 'pstack'.

OTCode	ot () const override
	Returns an OTCode.

std::string	type () const override
	Returns a type name.

bool	equal (const SO *p_other) const override
	Checks if this SO is equal to another SO.

bool	isOpen () const
	Checks if the file is open.

bool	readLeonLine (std::string &p_str)
	Our std::getline( istream, string ) version.

OpError	open ()
	Opens the file.

OpError	flush ()
	Flushes the file.

OpError	close (int(p_fclose)(FILE )=fclose)
	Closes the file.

OpError	readline (std::string &p_str, bool &p_eof)
	Reads a line of text from file.

OpError	readstring (std::string &p_str, bool &p_eof)
	Reads text from file.

OpError	writestring (const std::string &p_data)
	Writes to file.

OpError	writestring (std::string_view p_data)
	Writes to file.

Public Member Functions inherited from SO
	SO ()
	Ctor.

	SO (bool p_exec)
	Ctor.

	SO (const SO &p_other)
	Copy ctor.

virtual	~SO ()
	Virtual dtor.

	SO (SO &&)=delete

SO &	operator= (const SO &)=delete

SO &	operator= (SO &&)=delete

bool	getExec () const
	Getter for exec_.

void	setExec (bool p_exec)
	Setter for exec_.

virtual size_t	getSize () const
	Returns the size of the SO.

virtual SO *	clone () const
	Creates a new instance as copy with deep cloning.

virtual bool	gt (OpError &p_ec, const SO *) const
	Greater than.

virtual bool	ge (OpError &p_ec, const SO *) const
	Greater or equal.

Public Member Functions inherited from Counter< SO >
	Counter (Counter< SO > &&)=delete

Counter< SO > &	operator= (const Counter< SO > &)=delete

Counter< SO > &	operator= (Counter< SO > &&)=delete

Protected Member Functions
bool	invariant () const noexcept override
	Checks class invariants.

Protected Member Functions inherited from Counter< SO >
	Counter ()
	Ctor.

	Counter (const Counter< SO > &)
	Copy ctor.

	~Counter ()
	Dtor.

Protected Member Functions inherited from DbC
	~DbC ()=default
	Protected dtor.

Private Attributes
std::shared_ptr< SOFData >	f_
	The data.

Additional Inherited Members
Static Public Member Functions inherited from Counter< SO >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.

static size_t	getAliveCounter ()
	Static getter for objects alive.

static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.

Detailed Description

Semantic Object File.

Invariant: shared pointer is not null.

Constructor & Destructor Documentation

◆ SOF()

SOF::SOF	(	const std::string &	p_name,
		const std::string &	p_mode
	)

inlineexplicit

Ctor from a name.

Parameters

[in]	p_name	The file name.
[in]	p_mode	The file open mode.

Member Function Documentation

◆ close()

OpError SOF::close ( int(*)(FILE *) p_fclose = fclose )

Closes the file.

Can be called for already closed files.

Parameters

[in] p_fclose Can be set to a fclose() function for mocking in unit tests.

Returns: OpError ... The error code or success.

◆ dup()

SOF * SOF::dup ( ) const

inlineoverridevirtual

Creates a new instance as copy following the red book definition.

Returns: SO * ... A copy.

Implements SO.

◆ equal()

bool SOF::equal ( const SO * p_other ) const

inlineoverridevirtual

Checks if this SO is equal to another SO.

Equality means:
SOL und SOM are always equal.
For SOD, SOF and SOK, share_ptr<> points to the same object.
For SOA, share_ptr<> points to the same object, but empty arrays are equal nonetheless.
For SOO and SOo the function pointer must be the same.
Otherwise the value must be the same, even for SOS with shared_ptr<>.

Returns: bool ... true if the SO's are of the same type and equal

See also: Will be used directly and unchanged as operator eq

Parameters

[in] p_other The object to compare with.

Implements SO.

◆ flush()

OpError SOF::flush ( )

Flushes the file.

Precondition: f_->file_ == nullptr

Returns: OpError ... The error code or success.

◆ invariant()

bool SOF::invariant ( ) const

inlineoverrideprotectedvirtualnoexcept

Checks class invariants.

Returns: bool ... Indicates whether the class invariants are maintained.

Reimplemented from DbC.

◆ isOpen()

bool SOF::isOpen ( ) const

inline

Checks if the file is open.

Precondition: f_->file_ != nullptr

Returns: bool ... true, if the file is open.

◆ open()

OpError SOF::open ( )

Opens the file.

Precondition: f_->file_ == nullptr

Returns: OpError ... The error code or success.

◆ opequal()

std::string SOF::opequal ( ) const

inlineoverridevirtual

String representation of object for operators '=', 'cvs' and 'stack'.

Returns: std::string ... The representation.

Implements SO.

◆ opequalequal()

std::string SOF::opequalequal ( ) const

inlineoverridevirtual

String representation for operators '==' and 'pstack'.

This function attempts to produce a result that resembles the red book syntax
for creating the object.

Returns: std::string ... The representation.

Reimplemented from SO.

◆ ot()

OTCode SOF::ot ( ) const

inlineoverridevirtual

Returns an OTCode.

A "manual" implementation of polymorphism, where C++-polymorphisms fail

Returns: OTCode ... The OTCode of the instance.

Implements SO.

◆ readLeonLine()

bool SOF::readLeonLine ( std::string & p_str )

Our std::getline( istream, string ) version.

Precondition: f_->file_ != nullptr

Parameters

[out] p_str Will be cleared and filled.

Returns: bool ... Success or not.

◆ readline()

OpError SOF::readline	(	std::string &	p_str,
		bool &	p_eof
	)

Reads a line of text from file.

Precondition: p_str size <= max_int

Parameters

[in,out]	p_str	Buffer to write the text to. Limited by its size.
[out]	p_eof	EOF status of file after the operation.

Returns: OpError ... The error code or success.

◆ readstring()

OpError SOF::readstring	(	std::string &	p_str,
		bool &	p_eof
	)

Reads text from file.

Precondition: p_str ist not empty

Parameters

[in,out]	p_str	Buffer to write the text to. Limited by its size.
[out]	p_eof	EOF status of file after the operation.

Returns: OpError ... The error code or success.

◆ type()

std::string SOF::type ( ) const

inlineoverridevirtual

Returns a type name.

Returns: std::string ... The type name of the instance.

Implements SO.

◆ writestring() [1/2]

OpError SOF::writestring ( const std::string & p_data )

Writes to file.

Parameters

[in] p_data Text to write.

Returns: OpError ... The error code or success.

◆ writestring() [2/2]

OpError SOF::writestring ( std::string_view p_data )

Writes to file.

Parameters

[in] p_data Text to write.

Returns: OpError ... The error code or success.

The documentation for this class was generated from the following files:

sof.h
sof.cpp
