SOcomposite Class Reference

Composite Semantic Object. More...

#include <so.h>

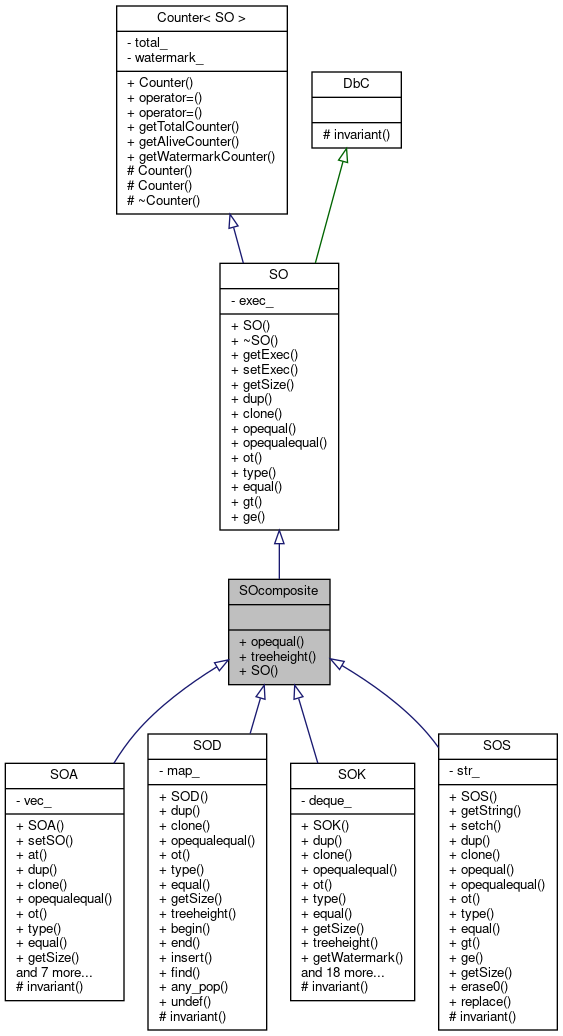

Inheritance diagram for SOcomposite:

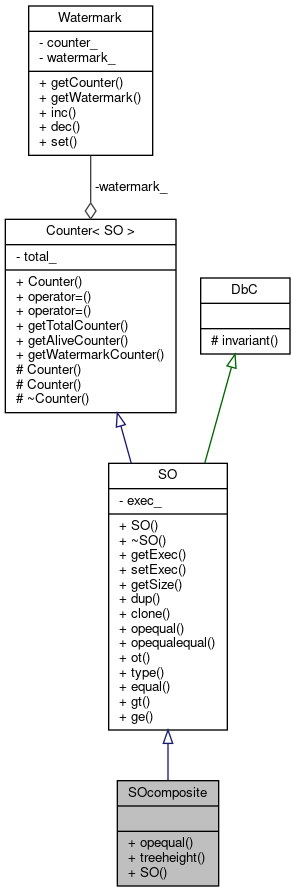

Collaboration diagram for SOcomposite:

Public Member Functions
virtual size_t	dagheight (size_t p_myheigth) const =0
	DAG Height.
Public Member Functions inherited from SOshptr
std::string	opequal () const override
	String representation of object for operators '=', 'cvs' and 'stack'.
bool	equal (const SO *p_other) const override
	Checks if this SO is equal to another SO.
	SO ()
	Ctor.
	SO (bool p_exec)
	Ctor.
	SO (const SO &p_other)
	Copy ctor.
	SO (SO &&)=delete
Public Member Functions inherited from SO
	SO ()
	Ctor.
	SO (bool p_exec)
	Ctor.
	SO (const SO &p_other)
	Copy ctor.
virtual	~SO ()=default
	Virtual dtor.
	SO (SO &&)=delete
SO &	operator= (const SO &)=delete
SO &	operator= (SO &&)=delete
bool	getExec () const
	Getter for exec_.
void	setExec (bool p_exec)
	Setter for exec_.
virtual size_t	getSize () const
	Returns the size of the SO.
virtual SO *	dup () const =0
	Creates a new instance as copy following the red book definition.
virtual SO *	clone () const
	Creates a new instance as copy with deep cloning.
virtual std::string	opequalequal () const
	String representation for operators '==' and 'pstack'.
virtual OTCode	ot () const =0
	Returns an OTCode.
virtual std::string_view	type () const =0
	Returns a type name.
virtual bool	gt (OpError &p_ec, const SO *) const
	Greater than.
virtual bool	ge (OpError &p_ec, const SO *) const
	Greater or equal.
Public Member Functions inherited from Counter< SO >
	Counter (Counter< SO > &&)=delete
Counter< SO > &	operator= (const Counter< SO > &)=delete
Counter< SO > &	operator= (Counter< SO > &&)=delete

Static Public Member Functions
static bool	otcodeIsComposite (OTCode p_code)
	Checks if an OTCode represents a composite type (A, Ax, D, K).
Static Public Member Functions inherited from Counter< SO >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.
static size_t	getAliveCounter ()
	Static getter for objects alive.
static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.

Additional Inherited Members
Protected Member Functions inherited from SOshptr
virtual void *	shptr () const =0
	Pointer to the shared object.
bool	invariant () const noexcept override
	Checks class invariants.
Protected Member Functions inherited from Counter< SO >
	Counter ()
	Ctor.
	Counter (const Counter< SO > &)
	Copy ctor.
	~Counter ()
	Dtor.
Protected Member Functions inherited from DbC
	~DbC ()=default
	Protected dtor.

Detailed Description

Composite Semantic Object.

Invariant

inherited from SOshptr

No instantiation. Inherits pure virtual functions from SO and SOshptr.

Member Function Documentation

dagheight()

virtual size_t SOcomposite::dagheight ( size_t  p_myheigth ) const

pure virtual

DAG Height.

The composite semantic objects can contain other composite semantic objects.
This creates a directed acyclic graph (DAG) of objects.
dagheight() calculates the height of this DAG starting at this.

Loops will be dedected by an heuristics. We stop the recursion if the heigth
exceeds DET_MAXDAGHEIGHT, a global constant in Leonardus.

Parameters

[in]

p_myheigth

Call with 0. Used internally for recursion.

Returns

size_t ... The maximum height of the DAG of SOcomposite -or- DET_MAXDAGHEIGHT if there is a loop.

Implemented in SOA, SOD, and SOK.

otcodeIsComposite()

static bool SOcomposite::otcodeIsComposite ( OTCode  p_code )

inlinestatic

Checks if an OTCode represents a composite type (A, Ax, D, K).

Composite types are semantic objects that can contain other semantic objects,

Parameters

[in]

p_code

The OTCode to check.

Returns

bool ... true, if the OTCode represents a composite type, otherwise false.

---

The documentation for this class was generated from the following file:

• so.h
