Leonardus: SOA Class Reference

Semantic Object Array. More...

#include <soa.h>

Inheritance diagram for SOA:

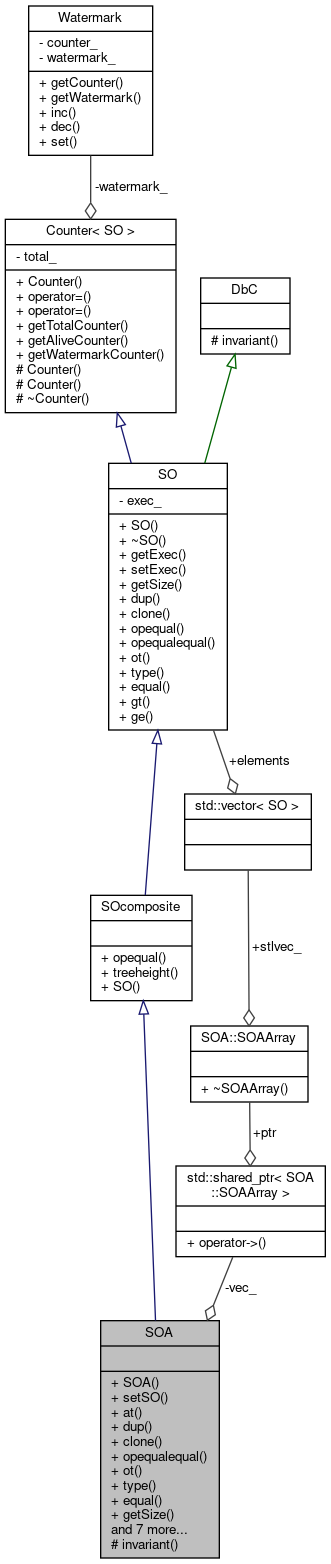

Collaboration diagram for SOA:

Classes
struct	SOAArray
	Semantic Object Array - array member class. More...

Public Member Functions
	SOA (bool p_exec, size_t p_len=0)
	Ctor.

	SOA (const SOA &p_other)
	Copy ctor.

	~SOA () override
	Dtor.

	SOA (SOA &&)=delete

SOA &	operator= (const SOA &)=delete

SOA &	operator= (SOA &&)=delete

void	setSO (size_t p_index, SOp p_sop)
	Setter for an array object.

SOp	ncat (size_t p_pos) const
	Returns a copy of the SOp at the given position.

SOA *	dup () const override
	Creates a new instance as copy following the red book definition.

SOA *	clone () const override
	Creates a new instance as copy with deep cloning.

std::string	opequalequal () const override
	String representation for operators '==' and 'pstack'.

OTCode	ot () const override
	Returns an OTCode.

std::string_view	type () const override
	Returns a type name.

bool	equal (const SO *p_other) const override
	Checks if this SO is equal to another SO.

size_t	getSize () const override
	Returns the size of the SO.

size_t	dagheight (size_t p_myheight) const override
	DAG Height.

auto	begin () const
	Returns an iterator to the first SOp.

auto	end () const
	Returns an iterator to the marker at end of the vector of SOps.

void	reduce ()
	Reduces the array by one SO at the end.

void	unfold2exec (Context &k) const
	Unfolds duplicates of the array-content to the execution stack.

SOp	front_pop ()
	Returns a copy of the SOp at position 0 and removes this first position from the array.

void	bind (Context &k)
	Replaces executable names with operator objects recursively into elements that are SOA.

int	findSubArray (const SOA *p_sub)
	Searches for p_sub within this.

void	substSubArray (size_t p_idx, size_t p_oldSize, const SOA *p_sub)
	Substitute at index p_idx p_oldsize elements by p_sub.

Public Member Functions inherited from SOshptr
std::string	opequal () const override
	String representation of object for operators '=', 'cvs' and 'stack'.

bool	equal (const SO *p_other) const override
	Checks if this SO is equal to another SO.

	SO ()
	Ctor.

	SO (bool p_exec)
	Ctor.

	SO (const SO &p_other)
	Copy ctor.

	SO (SO &&)=delete

Public Member Functions inherited from SO
	SO ()
	Ctor.

	SO (bool p_exec)
	Ctor.

	SO (const SO &p_other)
	Copy ctor.

virtual	~SO ()=default
	Virtual dtor.

	SO (SO &&)=delete

SO &	operator= (const SO &)=delete

SO &	operator= (SO &&)=delete

bool	getExec () const
	Getter for exec_.

void	setExec (bool p_exec)
	Setter for exec_.

virtual bool	gt (OpError &p_ec, const SO *) const
	Greater than.

virtual bool	ge (OpError &p_ec, const SO *) const
	Greater or equal.

Public Member Functions inherited from Counter< SO >
	Counter (Counter< SO > &&)=delete

Counter< SO > &	operator= (const Counter< SO > &)=delete

Counter< SO > &	operator= (Counter< SO > &&)=delete

Protected Member Functions
void *	shptr () const override
	Pointer to the shared object.

bool	invariant () const noexcept override
	Checks class invariants.

Protected Member Functions inherited from SOshptr
bool	invariant () const noexcept override
	Checks class invariants.

Protected Member Functions inherited from Counter< SO >
	Counter ()
	Ctor.

	Counter (const Counter< SO > &)
	Copy ctor.

	~Counter ()
	Dtor.

Protected Member Functions inherited from DbC
	~DbC ()=default
	Protected dtor.

Private Attributes
std::shared_ptr< SOAArray >	vec_
	The shared array.

Additional Inherited Members
Static Public Member Functions inherited from SOcomposite
static bool	otcodeIsComposite (OTCode p_code)
	Checks if an OTCode represents a composite type (A, Ax, D, K).

Static Public Member Functions inherited from Counter< SO >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.

static size_t	getAliveCounter ()
	Static getter for objects alive.

static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.

Detailed Description

Semantic Object Array.

SOA owns its objects.

Invariant: inherited from SOcomposite; vec_.stlvec_ elements are never null

Constructor & Destructor Documentation

◆ SOA()

SOA::SOA	(	bool	p_exec,
		size_t	p_len = `0`
	)

explicit

Ctor.

Parameters

[in]	p_exec	Exec attribute of the object.
[in]	p_len	A value > 0 reserves SOL objects at the creation of the SOA.

Member Function Documentation

◆ bind()

void SOA::bind ( Context & k )

Replaces executable names with operator objects recursively into elements that are SOA.

Parameters

[in,out] k The Context to use.

◆ clone()

SOA * SOA::clone ( ) const

overridevirtual

Creates a new instance as copy with deep cloning.

Default implementation falls back to dup().
Subclasses must override this if deep cloning is required.

Returns: SO * ... A deep copy.

Postcondition: return value != nullptr; return value maintains invariants

Reimplemented from SO.

◆ dagheight()

size_t SOA::dagheight ( size_t p_myheigth ) const

overridevirtual

DAG Height.

The composite semantic objects can contain other composite semantic objects.
This creates a directed acyclic graph (DAG) of objects.
dagheight() calculates the height of this DAG starting at this.

Loops will be dedected by an heuristics. We stop the recursion if the heigth
exceeds DET_MAXDAGHEIGHT, a global constant in Leonardus.

Parameters

[in] p_myheigth Call with 0. Used internally for recursion.

Returns: size_t ... The maximum height of the DAG of SOcomposite -or- DET_MAXDAGHEIGHT if there is a loop.

Implements SOcomposite.

◆ dup()

SOA * SOA::dup ( ) const

inlineoverridevirtual

Creates a new instance as copy following the red book definition.

Returns: SO * ... A copy.

Implements SO.

◆ equal()

bool SOA::equal ( const SO * p_other ) const

inlineoverridevirtual

Checks if this SO is equal to another SO.

Equality means:
SOL und SOM are always equal.
For SOD, SOF and SOK, share_ptr<> points to the same object.
For SOA, share_ptr<> points to the same object, but empty arrays are equal nonetheless.
For SOO and SOo the function pointer must be the same.
Otherwise the value must be the same, even for SOS with shared_ptr<>.

Precondition: parameter != nullptr

Returns: bool ... true if the SO's are of the same type and equal

See also: Will be used directly and unchanged as operator eq

Parameters

[in] p_other The object to compare with.

Implements SO.

◆ findSubArray()

int SOA::findSubArray ( const SOA * p_sub )

Searches for p_sub within this.

Uses equal for comparison of elements.

Precondition: p_sub != nullptr; p_sub->getSize() > 0

Parameters

[in] p_sub The array to look for.

Returns: int ...; - -1 if not found; - 0 to size-1 the index of the match

◆ front_pop()

SOp SOA::front_pop ( )

inline

Returns a copy of the SOp at position 0 and removes this first position from the array.

Has an undefined result if size of vector is 0.

Precondition: vectorsize > 0

Returns: SOp ... The object at position 0.

◆ getSize()

size_t SOA::getSize ( ) const

inlineoverridevirtual

Returns the size of the SO.

Default implementation returns 1 (for simple objects).
Override in subclasses to return the actual size
(e.g., length of a string, number of elements in a composite object).

Reimplemented from SO.

◆ invariant()

bool SOA::invariant ( ) const

inlineoverrideprotectedvirtualnoexcept

Checks class invariants.

Returns: bool ... Indicates whether the class invariants are maintained.

Reimplemented from DbC.

◆ ncat()

SOp SOA::ncat ( size_t p_pos ) const

inline

Returns a copy of the SOp at the given position.

The arrays keeps ownership of the element.

Note: ncat is short for 'Non Checking AT'.

Precondition: p_pos < vectorsize

Parameters

[in] p_pos The position, which is not checked.

Returns: SOp ... The object at position p_pos.

◆ opequalequal()

string SOA::opequalequal ( ) const

overridevirtual

String representation for operators '==' and 'pstack'.

This function attempts to produce a result that resembles the red book syntax
for creating the object.

Returns: std::string ... The representation.

Reimplemented from SO.

◆ ot()

OTCode SOA::ot ( ) const

inlineoverridevirtual

Returns an OTCode.

A "manual" implementation of polymorphism, where C++-polymorphisms fail

Returns: OTCode ... The OTCode of the instance.

Implements SO.

◆ reduce()

void SOA::reduce ( )

Reduces the array by one SO at the end.

The element will be deleted.
An empty array stays unchanged without an error condition.

◆ setSO()

void SOA::setSO	(	size_t	p_index,
		SOp	p_sop
	)

inline

Setter for an array object.

The existing SOx will be deleted.

Precondition: p_index < arraysize; p_sop != nullptr

Parameters

[in]	p_index	index from 0 to size-1. Attention: no range check.
[in]	p_sop	the SOA takes ownership of this SO.

◆ shptr()

void * SOA::shptr ( ) const

inlineoverrideprotectedvirtual

Pointer to the shared object.

Returns: void * ... The naked pointer.

Implements SOshptr.

◆ substSubArray()

void SOA::substSubArray	(	size_t	p_idx,
		size_t	p_oldSize,
		const SOA *	p_sub
	)

Substitute at index p_idx p_oldsize elements by p_sub.

The size of this->vec_ grows/shrinks/stay the same by (p_new->getSize()-p_oldsize). The replaced elements will be deleted. The member function setSO() is a special case. The new elements from p_sub are cloned.

Precondition: p_idx < getSize(); p_idx+p_oldsize <= getSize(); p_new != nullptr

Parameters

[in]	p_idx	The index starting with 0 of the old subarray.
[in]	p_oldSize	The size of the subarray which will be replaced.
[in]	p_sub	The array with the new elements.

◆ type()

std::string_view SOA::type ( ) const

inlineoverridevirtual

Returns a type name.

Returns: std::string_view ... The type name of the instance.

Implements SO.

◆ unfold2exec()

void SOA::unfold2exec ( Context & k ) const

Unfolds duplicates of the array-content to the execution stack.

Parameters

[in,out] k The Context to use.

The documentation for this class was generated from the following files:
