SOM Class Reference

Semantic Object Mark. More...

#include <sosimp.h>

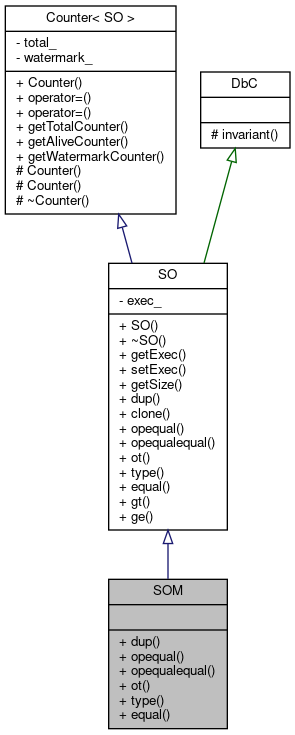

Inheritance diagram for SOM:

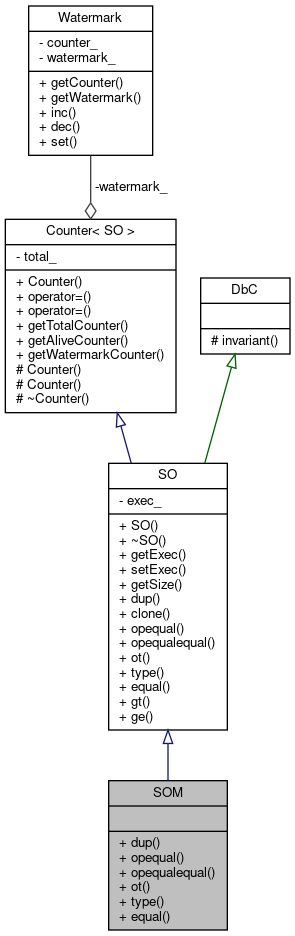

Collaboration diagram for SOM:

Public Member Functions
	SOM ()
	Ctor.
	~SOM () override
	Dtor.
	SOM (const SOM &)=delete
	SOM (SOM &&)=delete
SOM &	operator= (const SOM &)=delete
SOM &	operator= (SOM &&)=delete
SOM *	dup () const override
	Creates a new instance as copy following the red book definition.
std::string	opequal () const override
	String representation of object for operators '=', 'cvs' and 'stack'.
std::string	opequalequal () const override
	String representation for operators '==' and 'pstack'.
OTCode	ot () const override
	Returns an OTCode.
std::string	type () const override
	Returns a type name.
bool	equal (const SO *p_other) const override
	Checks if this SO is equal to another SO.
Public Member Functions inherited from SO
	SO ()
	Ctor.
	SO (bool p_exec)
	Ctor.
	SO (const SO &p_other)
	Copy ctor.
virtual	~SO ()
	Virtual dtor.
	SO (SO &&)=delete
SO &	operator= (const SO &)=delete
SO &	operator= (SO &&)=delete
bool	getExec () const
	Getter for exec_.
void	setExec (bool p_exec)
	Setter for exec_.
virtual size_t	getSize () const
	Returns the size of the SO.
virtual SO *	clone () const
	Creates a new instance as copy with deep cloning.
virtual bool	gt (OpError &p_ec, const SO *) const
	Greater than.
virtual bool	ge (OpError &p_ec, const SO *) const
	Greater or equal.
Public Member Functions inherited from Counter< SO >
	Counter (Counter< SO > &&)=delete
Counter< SO > &	operator= (const Counter< SO > &)=delete
Counter< SO > &	operator= (Counter< SO > &&)=delete

Additional Inherited Members
Static Public Member Functions inherited from Counter< SO >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.
static size_t	getAliveCounter ()
	Static getter for objects alive.
static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.
Protected Member Functions inherited from Counter< SO >
	Counter ()
	Ctor.
	Counter (const Counter< SO > &)
	Copy ctor.
	~Counter ()
	Dtor.
Protected Member Functions inherited from DbC
	~DbC ()=default
	Protected dtor.
virtual bool	invariant () const noexcept
	Checks the invariants of the class in which it is defined.

Detailed Description

Semantic Object Mark.

Invariant

None.

Member Function Documentation

dup()

SOM * SOM::dup ( ) const

inlineoverridevirtual

Creates a new instance as copy following the red book definition.

Returns

SO * ... A copy.

Implements SO.

equal()

bool SOM::equal ( const SO *  p_other ) const

inlineoverridevirtual

Checks if this SO is equal to another SO.

Equality means:
SOL und SOM are always equal.
For SOD, SOF and SOK, share_ptr<> points to the same object.
For SOA, share_ptr<> points to the same object, but empty arrays are equal nonetheless.
For SOO and SOo the function pointer must be the same.
Otherwise the value must be the same, even for SOS with shared_ptr<>.

Returns

bool ... true if the SO's are of the same type and equal

See also

Will be used directly and unchanged as operator eq

Parameters

[in]

p_other

The object to compare with.

Implements SO.

opequal()

std::string SOM::opequal ( ) const

inlineoverridevirtual

String representation of object for operators '=', 'cvs' and 'stack'.

Returns

std::string ... The representation.

Implements SO.

opequalequal()

std::string SOM::opequalequal ( ) const

inlineoverridevirtual

String representation for operators '==' and 'pstack'.

This function attempts to produce a result that resembles the red book syntax
for creating the object.

Returns

std::string ... The representation.

Reimplemented from SO.

ot()

OTCode SOM::ot ( ) const

inlineoverridevirtual

Returns an OTCode.

A "manual" implementation of polymorphism, where C++-polymorphisms fail

Returns

OTCode ... The OTCode of the instance.

Implements SO.

type()

std::string SOM::type ( ) const

inlineoverridevirtual

Returns a type name.

Returns

std::string ... The type name of the instance.

Implements SO.

---

The documentation for this class was generated from the following file:

• sosimp.h
