Leonardus: SOK Class Reference

Semantic Object stacK. More...

#include <sok.h>

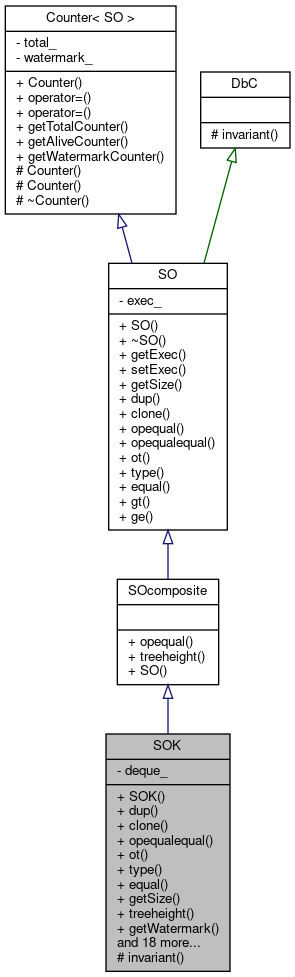

Inheritance diagram for SOK:

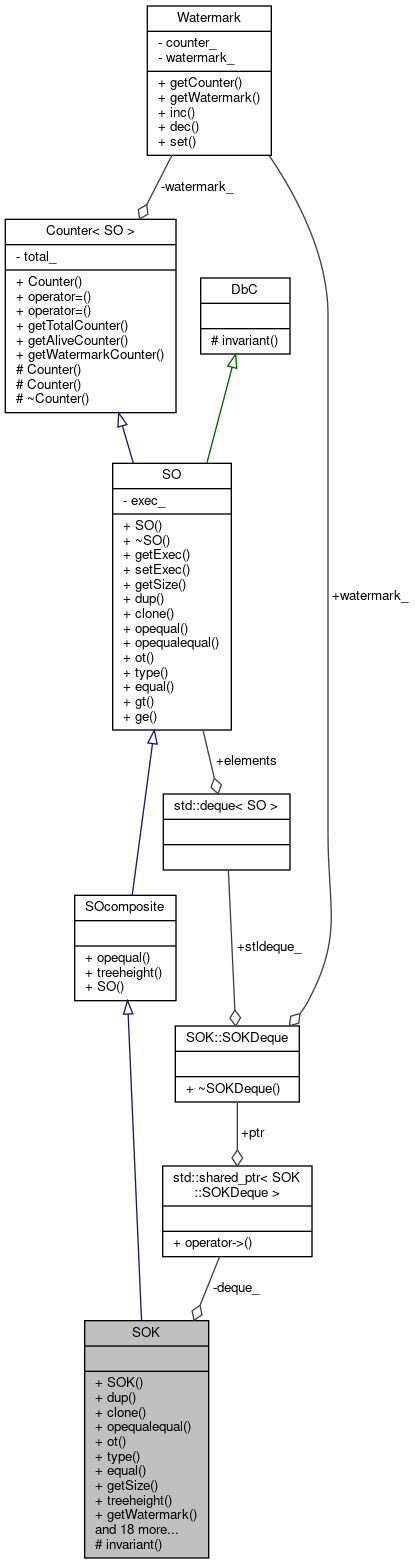

Collaboration diagram for SOK:

Classes
struct	SOKDeque
	Semantic Object Stack - deque member class. More...

Public Member Functions
	SOK ()
	Ctor.

	SOK (OTCode p_restr)
	Ctor.

	SOK (const SOcomposite &p_other)
	Ctor from parent class.

	SOK (const SOK &p_other)
	Copy ctor.

	~SOK () override
	Dtor.

	SOK (SOK &&)=delete

SOK &	operator= (const SOK &)=delete

SOK &	operator= (SOK &&)=delete

SOK *	dup () const override
	Creates a new instance as copy following the red book definition.

SOK *	clone () const override
	Creates a new instance as copy with deep cloning.

std::string	opequalequal () const override
	String representation for operators '==' and 'pstack'.

OTCode	ot () const override
	Returns an OTCode.

std::string_view	type () const override
	Returns a type name.

size_t	getSize () const override
	Returns the size of the SO.

size_t	dagheight (size_t p_myheight) const override
	DAG Height.

OTCode	getRestricted () const
	Returns the restriction.

size_t	getWatermark () const
	Returns the maximum size the stack has reached.

SOp	ncat (size_t p_pos) const
	Returns a copy of the SOp at the given position.

SOp	peek () const
	Returns a copy of the SOp of the top most position.

void	putSO (size_t p_index, SOp p_sop)
	Put a single SO into a stack object.

SOp	pop ()
	Returns a copy of the top SOp, removes the SOp from the SOK.

void	pop_delete ()
	Removes the top most object from SOK, and the referenced SO will be deleted.

void	push (SOp p_o1)
	Pushes the object onto the SOK and transfers ownership to the SOK.

void	push (std::initializer_list< SOp > p_list)
	Pushes n objects onto the SOK and transfers ownership to the SOK.

void	push_front (SOp p_obj)
	Pushes the object onto the front side of the SOK and transfers ownership to the SOK.

bool	underflowcheck (size_t p_size) const
	Checks SOK against given size.

bool	otchecker (std::initializer_list< OTCode > p_list) const
	Checks SO classes on the operand stack against a list of given OTCodes.

bool	otchecker (OTCode p_code) const
	Checks SO classes on the operand stack against an OTCode.

bool	otcheckerOr (OTCode p_code1, OTCode p_code2) const
	Checks SO class on the operand stack against two possible OTCodes.

bool	countto (size_t &p_retval, OTCode p_code) const
	Count the objects on the SOK down to but excluding the object from the given type.

SOp	findValue (SO *p_key) const
	Finds the given key within the whole stack, assuming a stack with dictionaries only.

SOp	findDict (SO *p_key) const
	Finds the dictionary storing the given key within the whole stack, assuming a stack with dictionaries only.

__int128	getI ()
	I from SOK.

__float128	getR ()
	R from SOK.

__float128	getIorRasR ()
	I or R from SOK as R Deletes the top object after reading its value.

size_t	getISize_t (OpError &p_ec)
	I from SOK as size_t.

Public Member Functions inherited from SOshptr
std::string	opequal () const override
	String representation of object for operators '=', 'cvs' and 'stack'.

bool	equal (const SO *p_other) const override
	Checks if this SO is equal to another SO.

	SO ()
	Ctor.

	SO (bool p_exec)
	Ctor.

	SO (const SO &p_other)
	Copy ctor.

	SO (SO &&)=delete

Public Member Functions inherited from SO
	SO ()
	Ctor.

	SO (bool p_exec)
	Ctor.

	SO (const SO &p_other)
	Copy ctor.

virtual	~SO ()=default
	Virtual dtor.

	SO (SO &&)=delete

SO &	operator= (const SO &)=delete

SO &	operator= (SO &&)=delete

bool	getExec () const
	Getter for exec_.

void	setExec (bool p_exec)
	Setter for exec_.

virtual bool	gt (OpError &p_ec, const SO *) const
	Greater than.

virtual bool	ge (OpError &p_ec, const SO *) const
	Greater or equal.

Public Member Functions inherited from Counter< SO >
	Counter (Counter< SO > &&)=delete

Counter< SO > &	operator= (const Counter< SO > &)=delete

Counter< SO > &	operator= (Counter< SO > &&)=delete

Protected Member Functions
void *	shptr () const override
	Pointer to the shared object.

bool	invariant () const noexcept override
	Checks class invariants.

Protected Member Functions inherited from SOshptr
bool	invariant () const noexcept override
	Checks class invariants.

Protected Member Functions inherited from Counter< SO >
	Counter ()
	Ctor.

	Counter (const Counter< SO > &)
	Copy ctor.

	~Counter ()
	Dtor.

Protected Member Functions inherited from DbC
	~DbC ()=default
	Protected dtor.

Private Attributes
std::shared_ptr< SOKDeque >	deque_
	The shared deque.

OTCode	restricted_ { OTCode::X }
	Restrict container entries to this type.

Additional Inherited Members
Static Public Member Functions inherited from SOcomposite
static bool	otcodeIsComposite (OTCode p_code)
	Checks if an OTCode represents a composite type (A, Ax, D, K).

Static Public Member Functions inherited from Counter< SO >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.

static size_t	getAliveCounter ()
	Static getter for objects alive.

static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.

Detailed Description

Semantic Object stacK.

Our own container adapter to std::deque to build a stack. It's a stack of pointers to SO. The bottom object has position 0. The top most object has position size-1. It can be constructed to hold only a certain object type, which is used to guard the system dictionary stack.

Invariant: inherited from SOcomposite; deque.size <= watermark; deque_.stldeque_ elements are never null.

Constructor & Destructor Documentation

◆ SOK()

SOK::SOK ( const SOcomposite & p_other )

inlineexplicit

Ctor from parent class.

Only copies the SOcomposite part; the deque_ is initialized as empty.

Parameters

[in] p_other Parent class object.

Member Function Documentation

◆ clone()

SOK * SOK::clone ( ) const

overridevirtual

Creates a new instance as copy with deep cloning.

Default implementation falls back to dup().
Subclasses must override this if deep cloning is required.

Returns: SO * ... A deep copy.

Postcondition: return value != nullptr; return value maintains invariants

Reimplemented from SO.

◆ countto()

bool SOK::countto	(	size_t &	p_retval,
		OTCode	p_code
	)		const

Count the objects on the SOK down to but excluding the object from the given type.

Implemented without C++ polymorphisms.

Parameters

[out]	p_retval	Number of objects.
[in]	p_code	OTCode to find.

Returns: bool ... true if the given OTCode can be found.

◆ dagheight()

size_t SOK::dagheight ( size_t p_myheigth ) const

overridevirtual

DAG Height.

The composite semantic objects can contain other composite semantic objects.
This creates a directed acyclic graph (DAG) of objects.
dagheight() calculates the height of this DAG starting at this.

Loops will be dedected by an heuristics. We stop the recursion if the heigth
exceeds DET_MAXDAGHEIGHT, a global constant in Leonardus.

Parameters

[in] p_myheigth Call with 0. Used internally for recursion.

Returns: size_t ... The maximum height of the DAG of SOcomposite -or- DET_MAXDAGHEIGHT if there is a loop.

Implements SOcomposite.

◆ dup()

SOK * SOK::dup ( ) const

inlineoverridevirtual

Creates a new instance as copy following the red book definition.

Returns: SO * ... A copy.

Implements SO.

◆ findDict()

SOp SOK::findDict ( SO * p_key ) const

Finds the dictionary storing the given key within the whole stack, assuming a stack with dictionaries only.

Equality is determined by SO::equal().
The ownership of the returned SOP stays within the stack.
We return a SOp instead of a SOD * to reduce coupling.

Precondition: p_key != nullptr; restricted_ == OTCode::D

Parameters

[in] p_key The key to search for.

Returns: SOp ... Points to the found dictionary. Returns a null pointer if p_key can't be found.

◆ findValue()

SOp SOK::findValue ( SO * p_key ) const

Finds the given key within the whole stack, assuming a stack with dictionaries only.

Equality is determined by SO::equal().

Precondition: p_key != nullptr; restricted_ == OTCode::D

Parameters

[in] p_key The key to search for.

Returns: SOp ... Points to the found value, the ownership stays within the dictionary. Returns a null pointer if key can't be found.

◆ getI()

__int128 SOK::getI ( )

I from SOK.

Deletes the top object after reading its integer value.
Does not check for stack underflow. Does not check OTCode.

Precondition: stack size > 0; otchecker( OTCode::I )

Returns: __int128 ... The integer from the operand stack.

◆ getIorRasR()

__float128 SOK::getIorRasR ( )

I or R from SOK as R Deletes the top object after reading its value.

Does not check the type of the operand stack object.
Does not check for stack underflow.

Precondition: stack size > 0; top stack object is an I or a R

Returns: __float128 ... The float from the operand stack.

◆ getISize_t()

size_t SOK::getISize_t ( OpError & p_ec )

I from SOK as size_t.

Deletes the top object after reading its integer value.
Exits with rangecheck, if the integer from stack can not be converted to size_t.
Checks the type of the operand stack object.
Does not check for stack underflow.

Precondition: stack size > 0

Parameters

[out] p_ec Success or error code.

Returns: size_t ... The integer from the operand stack.

◆ getR()

__float128 SOK::getR ( )

R from SOK.

Deletes the top object after reading its real value.
Does not check for stack underflow. Does not check OTCode.

Precondition: stack size > 0; otchecker( OTCode::R )

Returns: __float128 ... The float from the operand stack.

◆ getRestricted()

OTCode SOK::getRestricted ( ) const

inline

Returns the restriction.

Returns: OTCode ... The restriction.

◆ getSize()

size_t SOK::getSize ( ) const

inlineoverridevirtual

Returns the size of the SO.

Default implementation returns 1 (for simple objects).
Override in subclasses to return the actual size
(e.g., length of a string, number of elements in a composite object).

Reimplemented from SO.

◆ getWatermark()

size_t SOK::getWatermark ( ) const

inline

Returns the maximum size the stack has reached.

Returns: size_t ... The watermark value.

◆ invariant()

bool SOK::invariant ( ) const

inlineoverrideprotectedvirtualnoexcept

Checks class invariants.

Returns: bool ... Indicates whether the class invariants are maintained.

Reimplemented from DbC.

◆ ncat()

SOp SOK::ncat ( size_t p_pos ) const

inline

Returns a copy of the SOp at the given position.

The SOK keeps ownership of the returned pointer.

Note: ncat is short for 'Non Checking AT'.

Precondition: p_pos < dequesize

Parameters

[in] p_pos Position. There is no range check.

Returns: SO * ... A copy of the pointer at the selected position.

◆ opequalequal()

std::string SOK::opequalequal ( ) const

overridevirtual

String representation for operators '==' and 'pstack'.

This function attempts to produce a result that resembles the red book syntax
for creating the object.

Returns: std::string ... The representation.

Reimplemented from SO.

◆ ot()

OTCode SOK::ot ( ) const

inlineoverridevirtual

Returns an OTCode.

A "manual" implementation of polymorphism, where C++-polymorphisms fail

Returns: OTCode ... The OTCode of the instance.

Implements SO.

◆ otchecker() [1/2]

bool SOK::otchecker ( OTCode p_code ) const

inline

Checks SO classes on the operand stack against an OTCode.

Precondition: stack not empty; p_code != OTCode::X

Parameters

[in] p_code OTCode.

Returns: bool ... true if top element on stack matches the given OTCode.

◆ otchecker() [2/2]

bool SOK::otchecker ( std::initializer_list< OTCode > p_list ) const

Checks SO classes on the operand stack against a list of given OTCodes.

OTCode::X in p_list matches all object types on the stack.

Precondition: stacksize >= length(p_s); listsize >= 2

Parameters

[in] p_list List of at least 2 OTCodes.

Returns: bool ... true if stack SOs satisfy the given list.

◆ otcheckerOr()

bool SOK::otcheckerOr	(	OTCode	p_code1,
		OTCode	p_code2
	)		const

inline

Checks SO class on the operand stack against two possible OTCodes.

Precondition: stack not empty; p_code1 != OTCode::X; p_code2 != OTCode::X

Parameters

[in]	p_code1	first OTCode
[in]	p_code2	second OTCode

Returns: bool ... true if top object has type p_code1 or p_code2

◆ peek()

SOp SOK::peek ( ) const

inline

Returns a copy of the SOp of the top most position.

The SOK keeps ownership.
Calling peek on an empty stack causes undefined behavior.

Precondition: dequesize > 0.

Returns: SO * ... Copy of pointer to top SO.

◆ pop()

SOp SOK::pop ( )

inline

Returns a copy of the top SOp, removes the SOp from the SOK.

The caller takes ownership of the returned pointer.

Precondition: dequesize > 0

Returns: SO * ... The removed pointer.

◆ pop_delete()

void SOK::pop_delete ( )

inline

Removes the top most object from SOK, and the referenced SO will be deleted.

Precondition: dequesize > 0

◆ push() [1/2]

void SOK::push ( SOp p_o1 )

Pushes the object onto the SOK and transfers ownership to the SOK.

The SOK is now responsible for managing the object's lifetime.

Precondition: p_o1 != nullptr; restricted_ holds

Parameters

[in] p_o1 ... Pointer to SO.

◆ push() [2/2]

void SOK::push ( std::initializer_list< SOp > p_list )

Pushes n objects onto the SOK and transfers ownership to the SOK.

Precondition: all p_list pointers != nullptr; restricted_ holds

Parameters

[in] p_list ... Initializer list of pointers to SOs.

◆ push_front()

void SOK::push_front ( SOp p_obj )

Pushes the object onto the front side of the SOK and transfers ownership to the SOK.

This is a non-stack feature supporting the constructing of a SOK from the operand stack.
The SOK is now responsible for managing the object's lifetime.

Precondition: p_obj != nullptr; restricted_ holds

Parameters

[in] p_obj ... Pointer to SO.

◆ putSO()

void SOK::putSO	(	size_t	p_index,
		SOp	p_sop
	)

inline

Put a single SO into a stack object.

The existing SOx will be deleted.

Precondition: p_index < stacksize; p_sop != nullptr; restricted_ holds

Parameters

[in]	p_index	Index from 0 to size-1. Attention: no range check.
[in]	p_sop	The SOK takes ownership of this SO.

◆ shptr()

void * SOK::shptr ( ) const

inlineoverrideprotectedvirtual

Pointer to the shared object.

Returns: void * ... The naked pointer.

Implements SOshptr.

◆ type()

std::string_view SOK::type ( ) const

inlineoverridevirtual

Returns a type name.

Returns: std::string_view ... The type name of the instance.

Implements SO.

◆ underflowcheck()

bool SOK::underflowcheck ( size_t p_size ) const

inline

Checks SOK against given size.

Parameters

[in] p_size Check value.

Returns: bool ... true if stack is large enough.

Member Data Documentation

◆ restricted_

OTCode SOK::restricted_ { OTCode::X }

private

Restrict container entries to this type.

OTCode::X is the value indicating no restriction.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SOK()

Member Function Documentation

◆ clone()

◆ countto()

◆ dagheight()

◆ dup()

◆ findDict()

◆ findValue()

◆ getI()

◆ getIorRasR()

◆ getISize_t()

◆ getR()

◆ getRestricted()

◆ getSize()

◆ getWatermark()

◆ invariant()

◆ ncat()

◆ opequalequal()

◆ ot()

◆ otchecker() [1/2]

◆ otchecker() [2/2]

◆ otcheckerOr()

◆ peek()

◆ pop()

◆ pop_delete()

◆ push() [1/2]

◆ push() [2/2]

◆ push_front()

◆ putSO()

◆ shptr()

◆ type()

◆ underflowcheck()

Member Data Documentation

◆ restricted_
