SO Class Reference

Semantic Object. More...

#include <so.h>

Inheritance diagram for SO:

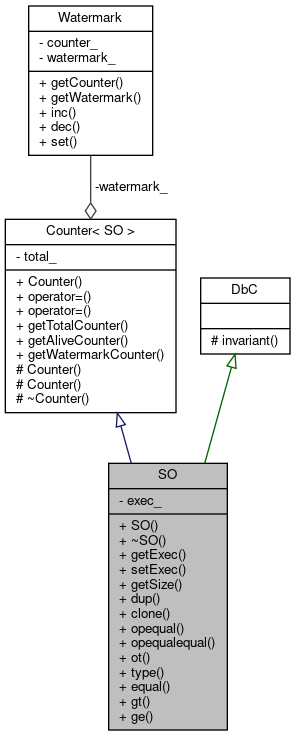

Collaboration diagram for SO:

Public Member Functions
	SO ()
	Ctor.
	SO (bool p_exec)
	Ctor.
	SO (const SO &p_other)
	Copy ctor.
virtual	~SO ()
	Virtual dtor.
	SO (SO &&)=delete
SO &	operator= (const SO &)=delete
SO &	operator= (SO &&)=delete
bool	getExec () const
	Getter for exec_.
void	setExec (bool p_exec)
	Setter for exec_.
virtual size_t	getSize () const
	Returns the size of the SO.
virtual SO *	dup () const =0
	Creates a new instance as copy following the red book definition.
virtual SO *	clone () const
	Creates a new instance as copy with deep cloning.
virtual std::string	opequal () const =0
	String representation of object for operators '=', 'cvs' and 'stack'.
virtual std::string	opequalequal () const
	String representation for operators '==' and 'pstack'.
virtual OTCode	ot () const =0
	Returns an OTCode.
virtual std::string	type () const =0
	Returns a type name.
virtual bool	equal (const SO *) const =0
	Checks if this SO is equal to another SO.
virtual bool	gt (OpError &p_ec, const SO *) const
	Greater than.
virtual bool	ge (OpError &p_ec, const SO *) const
	Greater or equal.
Public Member Functions inherited from Counter< SO >
	Counter (Counter< SO > &&)=delete
Counter< SO > &	operator= (const Counter< SO > &)=delete
Counter< SO > &	operator= (Counter< SO > &&)=delete

Private Attributes
bool	exec_
	Flag indicating whether the SO is executable (true) or literal (false).

Additional Inherited Members
Static Public Member Functions inherited from Counter< SO >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.
static size_t	getAliveCounter ()
	Static getter for objects alive.
static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.
Protected Member Functions inherited from Counter< SO >
	Counter ()
	Ctor.
	Counter (const Counter< SO > &)
	Copy ctor.
	~Counter ()
	Dtor.
Protected Member Functions inherited from DbC
	~DbC ()=default
	Protected dtor.
virtual bool	invariant () const noexcept
	Checks the invariants of the class in which it is defined.

Detailed Description

Semantic Object.

Invariant

Global Invariants: No Instance. Forced by pure virtual functions.

Constructor & Destructor Documentation

SO()

SO::SO ( bool  p_exec )

inlineexplicit

Ctor.

Parameters

[in]

p_exec

The executive attribute of the semantic object.

~SO()

virtual SO::~SO ( )

inlinevirtual

Virtual dtor.

For polymorphic containers.

Member Function Documentation

clone()

virtual SO * SO::clone ( ) const

inlinevirtual

Creates a new instance as copy with deep cloning.

Default implementation falls back to dup().
Subclasses must override this if deep cloning is required.

Returns

SO * ... A deep copy.

Reimplemented in SOA, SOD, SOK, and SOS.

dup()

virtual SO * SO::dup ( ) const

pure virtual

Creates a new instance as copy following the red book definition.

Returns

SO * ... A copy.

Implemented in SOA, SOD, SOF, SOK, SOQ, SOS, SOM, SOL, SOI, SOB, SOR, SON, and SOO.

equal()

virtual bool SO::equal ( const SO *  ) const

pure virtual

Checks if this SO is equal to another SO.

Equality means:
SOL und SOM are always equal.
For SOD, SOF and SOK, share_ptr<> points to the same object.
For SOA, share_ptr<> points to the same object, but empty arrays are equal nonetheless.
For SOO and SOo the function pointer must be the same.
Otherwise the value must be the same, even for SOS with shared_ptr<>.

Returns

bool ... true if the SO's are of the same type and equal

See also

Will be used directly and unchanged as operator eq

Implemented in SOA, SOD, SOF, SOK, SOQ, SOS, SOM, SOL, SOI, SOB, SOR, SON, and SOO.

ge()

virtual bool SO::ge ( OpError &  p_ec, const SO *    ) const

inlinevirtual

Greater or equal.

The redundancy between equal(), gt() and ge() is a matter of performance.

Parameters

[out]

p_ec

Error code.

Returns

bool ... true is comparable and ge.

Reimplemented in SOQ, SOS, SOI, and SOR.

getSize()

virtual size_t SO::getSize ( ) const

inlinevirtual

Returns the size of the SO.

Default implementation returns 1 (for simple objects).
Override in subclasses to return the actual size (e.g., length of a string, number of elements in a composite).

Reimplemented in SOA, SOD, SOK, SOS, and SON.

gt()

virtual bool SO::gt ( OpError &  p_ec, const SO *    ) const

inlinevirtual

Greater than.

The redundancy between equal(), gt() and ge() is a matter of performance.

Parameters

[out]

p_ec

Error code.

Returns

bool ... true is comparable and gt.

Reimplemented in SOQ, SOS, SOI, and SOR.

opequal()

virtual std::string SO::opequal ( ) const

pure virtual

String representation of object for operators '=', 'cvs' and 'stack'.

Returns

std::string ... The representation.

Implemented in SOcomposite, SOF, SOQ, SOS, SOM, SOL, SOI, SOB, SOR, SON, and SOO.

opequalequal()

virtual std::string SO::opequalequal ( ) const

inlinevirtual

String representation for operators '==' and 'pstack'.

This function attempts to produce a result that resembles the red book syntax
for creating the object.

Returns

std::string ... The representation.

Reimplemented in SOA, SOD, SOF, SOK, SOS, SOM, and SOL.

ot()

virtual OTCode SO::ot ( ) const

pure virtual

Returns an OTCode.

A "manual" implementation of polymorphism, where C++-polymorphisms fail

Returns

OTCode ... The OTCode of the instance.

Implemented in SOA, SOD, SOF, SOK, SOQ, SOS, SOM, SOL, SOI, SOB, SOR, SON, SOO, and SOo.

type()

virtual std::string SO::type ( ) const

pure virtual

Returns a type name.

Returns

std::string ... The type name of the instance.

Implemented in SOA, SOD, SOF, SOK, SOQ, SOS, SOM, SOL, SOI, SOB, SOR, SON, and SOO.

Member Data Documentation

exec_

bool SO::exec_

private

Flag indicating whether the SO is executable (true) or literal (false).

Only relevant for SON and SOA subclasses.

---

The documentation for this class was generated from the following file:

• so.h
