SON Class Reference

Semantic Object Name. More...

#include <sosimp.h>

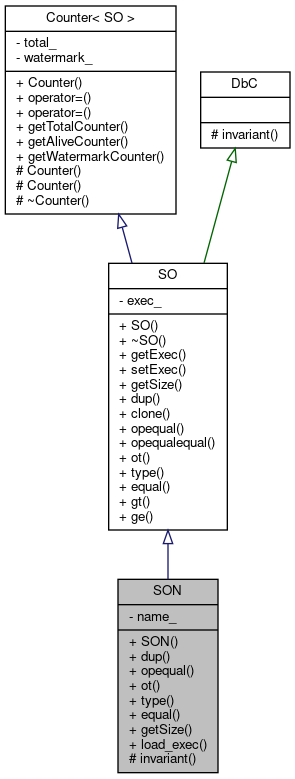

Inheritance diagram for SON:

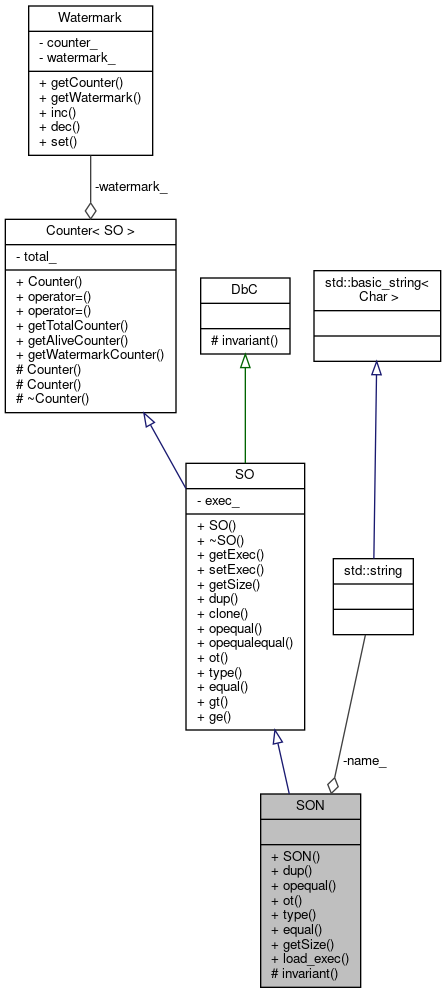

Collaboration diagram for SON:

Public Member Functions
	SON (std::string p_name, bool p_exec=false)
	Ctor from a string as name.
	SON (const SON &p_other)
	Copy ctor.
	~SON () override
	Dtor.
	SON (SON &&)=delete
SON &	operator= (const SON &)=delete
SON &	operator= (SON &&)=delete
std::string	getName () const
	Getter for name_.
SON *	dup () const override
	Creates a new instance as copy following the red book definition.
std::string	opequal () const override
	String representation of object for operators '=', 'cvs' and 'stack'.
OTCode	ot () const override
	Returns an OTCode.
std::string	type () const override
	Returns a type name.
bool	equal (const SO *p_other) const override
	Checks if this SO is equal to another SO.
size_t	getSize () const override
	Returns the size of the SO.
Public Member Functions inherited from SO
	SO ()
	Ctor.
	SO (bool p_exec)
	Ctor.
	SO (const SO &p_other)
	Copy ctor.
virtual	~SO ()
	Virtual dtor.
	SO (SO &&)=delete
SO &	operator= (const SO &)=delete
SO &	operator= (SO &&)=delete
bool	getExec () const
	Getter for exec_.
void	setExec (bool p_exec)
	Setter for exec_.
virtual SO *	clone () const
	Creates a new instance as copy with deep cloning.
virtual std::string	opequalequal () const
	String representation for operators '==' and 'pstack'.
virtual bool	gt (OpError &p_ec, const SO *) const
	Greater than.
virtual bool	ge (OpError &p_ec, const SO *) const
	Greater or equal.
Public Member Functions inherited from Counter< SO >
	Counter (Counter< SO > &&)=delete
Counter< SO > &	operator= (const Counter< SO > &)=delete
Counter< SO > &	operator= (Counter< SO > &&)=delete

Protected Member Functions
bool	invariant () const noexcept override
	Checks class invariants.
Protected Member Functions inherited from Counter< SO >
	Counter ()
	Ctor.
	Counter (const Counter< SO > &)
	Copy ctor.
	~Counter ()
	Dtor.
Protected Member Functions inherited from DbC
	~DbC ()=default
	Protected dtor.

Private Attributes
std::string	name_
	The name.

Additional Inherited Members
Static Public Member Functions inherited from Counter< SO >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.
static size_t	getAliveCounter ()
	Static getter for objects alive.
static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.

Detailed Description

Semantic Object Name.

Invariant

name_ not empty.

Constructor & Destructor Documentation

SON()

SON::SON ( std::string  p_name, bool  p_exec = false  )

inlineexplicit

Ctor from a string as name.

Parameters

[in]	p_name	The new name. Must not be empty.
[in]	p_exec	If true, the object is marked as executable.

Member Function Documentation

dup()

SON * SON::dup ( ) const

inlineoverridevirtual

Creates a new instance as copy following the red book definition.

Returns

SO * ... A copy.

Implements SO.

equal()

bool SON::equal ( const SO *  p_other ) const

inlineoverridevirtual

Checks if this SO is equal to another SO.

Equality means:
SOL und SOM are always equal.
For SOD, SOF and SOK, share_ptr<> points to the same object.
For SOA, share_ptr<> points to the same object, but empty arrays are equal nonetheless.
For SOO and SOo the function pointer must be the same.
Otherwise the value must be the same, even for SOS with shared_ptr<>.

Returns

bool ... true if the SO's are of the same type and equal

See also

Will be used directly and unchanged as operator eq

Parameters

[in]

p_other

The object to compare with.

Implements SO.

getSize()

size_t SON::getSize ( ) const

inlineoverridevirtual

Returns the size of the SO.

Default implementation returns 1 (for simple objects).
Override in subclasses to return the actual size (e.g., length of a string, number of elements in a composite).

Reimplemented from SO.

invariant()

bool SON::invariant ( ) const

inlineoverrideprotectedvirtualnoexcept

Checks class invariants.

Returns

bool ... Indicates whether the class invariants are maintained.

Reimplemented from DbC.

opequal()

std::string SON::opequal ( ) const

inlineoverridevirtual

String representation of object for operators '=', 'cvs' and 'stack'.

Returns

std::string ... The representation.

Implements SO.

ot()

OTCode SON::ot ( ) const

inlineoverridevirtual

Returns an OTCode.

A "manual" implementation of polymorphism, where C++-polymorphisms fail

Returns

OTCode ... The OTCode of the instance.

Implements SO.

type()

std::string SON::type ( ) const

inlineoverridevirtual

Returns a type name.

Returns

std::string ... The type name of the instance.

Implements SO.

---

The documentation for this class was generated from the following file:

• sosimp.h
