Context Class Reference

The context of execution. More...

#include <context.h>

Inheritance diagram for Context:

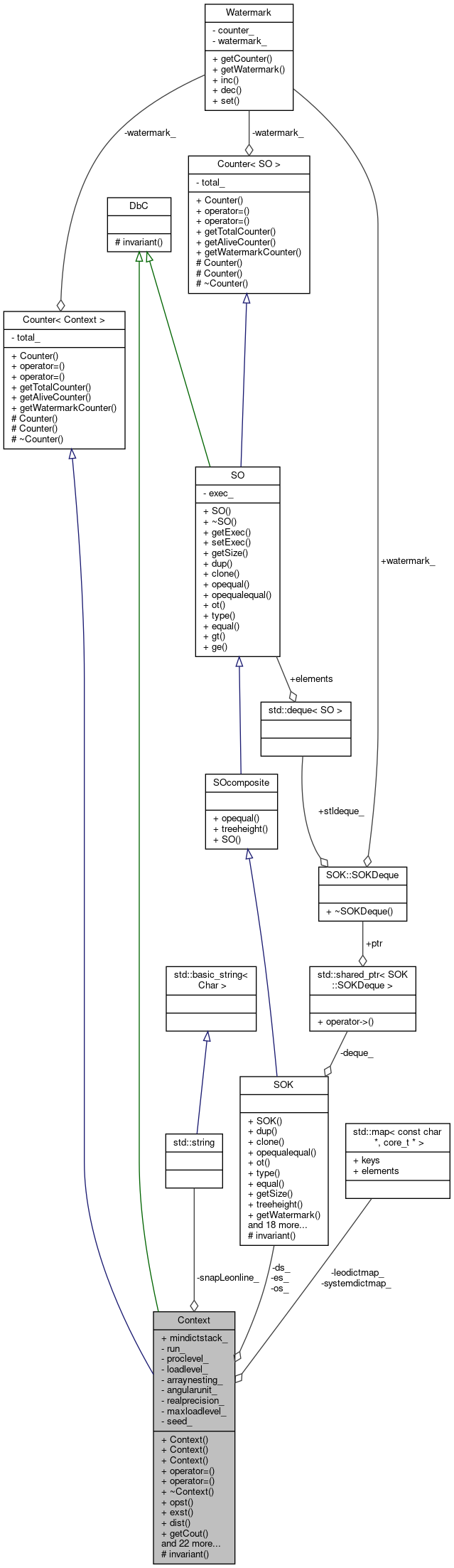

Collaboration diagram for Context:

Public Member Functions
	Context ()
	Ctor. More...
	Context (const Context &)=delete
	Delete the copy ctor.
	Context (Context &&)=delete
	Delete the move ctor.
Context &	operator= (const Context &)=delete
	Delete copy assignement.
Context &	operator= (Context &&)=delete
	Delete move assignement.
virtual	~Context ()
	Dtor. More...
SOK &	opst ()
	Access to the operand stack.
SOK &	exst ()
	Access to the execution stack.
SOK &	dist ()
	Access to the dictionary stack.
std::ostream &	getCout ()
	Getter for cout_. More...
size_t	getProclevel () const
	Getter for procedure level.
size_t	getLoadlevel () const
	Getter for load level.
size_t	getArraynesting () const
	Getter for nesting level.
size_t	getMaxloadlevel () const
	Getter for maximum load level.
bool	getInterpreterLoop () const
	Getter for interpreter loop control variable run_.
void	stopInterpreterLoop ()
	Sets run_ to false.
void	setSnapLeonline (const std::string &p_line)
	Setter for snapLeonline_.
size_t	getRealprecision () const
	Getter for realprecision_.
void	setRealprecision (size_t p_prec)
	Setter for realprecision_.
auto	getAngularUnit () const
	Getter for angularunit_.
void	setAngularUnit (AngularUnit p_unit)
	Setter for angularunit_.
uint32_t	getSeed () const
	Getter for seed_.
void	setSeed (uint32_t p_seed)
	Setter for seed_.
void	incProclevel ()
	Increments the procedure level.
void	decProclevel ()
	Decrements the procedure level.
void	incLoadlevel ()
	Increments load level.
void	decLoadlevel ()
	Decrements load level.
void	incArraynesting ()
	Increments array nesting.
void	decArraynesting ()
	Decrements array nesting.
void	status_statistics ()
	Snapshot of Context state to cout. More...
void	property_statistics ()
	Snapshot of Context properties to cout. More...
void	stack_statistics ()
	Snapshot of stacks to cout. More...
Public Member Functions inherited from Counter< Context >
	Counter (Counter< Context > &&)=delete
Counter< Context > &	operator= (const Counter< Context > &)=delete
Counter< Context > &	operator= (Counter< Context > &&)=delete

Static Public Attributes
static constexpr size_t	mindictstack_ = 3
	Corresponds with the setup in the ctor.

Protected Member Functions
bool	invariant () const noexcept override
	Checks class invariants. More...
Protected Member Functions inherited from Counter< Context >
	Counter ()
	Ctor.
	Counter (const Counter< Context > &)
	Copy ctor.
	~Counter ()
	Dtor.
virtual bool	invariant () const noexcept
	Checks the invariants of the class in which it is defined. More...

Private Attributes
std::string	snapLeonline_
	For debugging purposes a copy of the current leon-format line.
SOK	os_
	The operand stack.
SOK	es_
	The execution stack.
SOK	ds_
	The dictionary stack.
bool	run_ = true
	Control variable for the interpreter loop.
int	proclevel_ = 0
	The process level is incremented for every '{' on input. More...
int	loadlevel_ = 0
	The load level is incemented for ever load_exec() call. More...
int	arraynesting_ = 0
	The nesting level is incemented for every array within an array for the bind operator. More...
AngularUnit	angularunit_ = AngularUnit::DEG
	Context Property. More...
size_t	realprecision_ = 10
	Context Property. More...
size_t	maxloadlevel_ = 1000
	Context Property. More...
uint32_t	seed_ = 0
	Context Property. More...

Static Private Attributes
static const std::map< const char *, core_t * >	systemdictmap_
	Maps SON data to SOO data for the systemdict.
static const std::map< const char *, core_t * >	leodictmap_
	Maps SON data to SOO data for the leodict. More...

Additional Inherited Members
Static Public Member Functions inherited from Counter< Context >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.
static size_t	getAliveCounter ()
	Static getter for objects alive.
static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.

Detailed Description

The context of execution.

Invariant

proclevel_ >= 0

loadlevel_ >= 0

arraynesting_ >= 0

Constructor & Destructor Documentation

Context()

Context::Context

(

)

Ctor.

Pushes and initializes a user dictionary, a leo dictionary, and a system dictionary onto the dictionary stack. Sets up empty stacks and all Context parameters.

Postcondition

mindictstack_ == ds_.getSize()

~Context()

Context::~Context ( )

virtual

Dtor.

Frees all resources to enable a comprehensive memory leak analysis upon program exit.

Member Function Documentation

getCout()

std::ostream & Context::getCout ( )

inline

Getter for cout_.

We use the Interpreter stream until a split of streams for multiple Contexts will be implemented.

invariant()

bool Context::invariant ( ) const

inlineoverrideprotectedvirtualnoexcept

Checks class invariants.

Returns

bool ... Indicates whether the class invariants are maintained.

Reimplemented from DbC.

property_statistics()

void Context::property_statistics

(

)

Snapshot of Context properties to cout.

stack_statistics()

void Context::stack_statistics

(

)

Snapshot of stacks to cout.

status_statistics()

void Context::status_statistics

(

)

Snapshot of Context state to cout.

Member Data Documentation

angularunit_

AngularUnit Context::angularunit_ = AngularUnit::DEG

private

Context Property.

The angular unit for trigonometric functions.

arraynesting_

int Context::arraynesting_ = 0

private

The nesting level is incemented for every array within an array for the bind operator.

within the class it is an int and a size_t on the interface.

leodictmap_

const std::map< const char *, core_t * > Context::leodictmap_

staticprivate

Initial value:

= {

  { "concat",     &sox_concat },
  { "cvq",        &sox_cvq },
  { "DEG",        &sox_DEG },
  { "dictstack$", &sox_dictstack$ },
  { "divqr",      &sox_divqr },
  { "__endstack", &sox___endstack },   { "$", &sox___endstack },
  { "execstack$", &sox_execstack$ },
  { "gcd",        &sox_gcd },          { "ggT", &sox_gcd },
  { "index$",     &sox_index$ },
  { "isunitfraction", &sox_isunitfraction },
  { "lcm",        &sox_lcm },          { "kgV", &sox_lcm },
  { "nop",        &sox_nop },
  { "pop$",       &sox_pop$ },
  { "push$",      &sox_push$ },
  { "RAD",        &sox_RAD },
  { "reciprocal", &sox_reciprocal },
  { "turn",       &sox_turn },
  { "xgcd",       &sox_xgcd },         { "xggT", &sox_xgcd }
}

Maps SON data to SOO data for the leodict.

loadlevel_

int Context::loadlevel_ = 0

private

The load level is incemented for ever load_exec() call.

within the class it is an int and a size_t on the interface.

maxloadlevel_

size_t Context::maxloadlevel_ = 1000

private

Context Property.

A maximum of nesting load of name objects.

proclevel_

int Context::proclevel_ = 0

private

The process level is incremented for every '{' on input.

within the class it is an int and a size_t on the interface.

realprecision_

size_t Context::realprecision_ = 10

private

Context Property.

Precison of printf() output of SOR values.

seed_

uint32_t Context::seed_ = 0

private

Context Property.

A maximum of nesting load of name objects.

---

The documentation for this class was generated from the following files:

• context.h
• context.cpp
