Leonardus: SOR Class Reference

Semantic Object Real. More...

#include <sosimp.h>

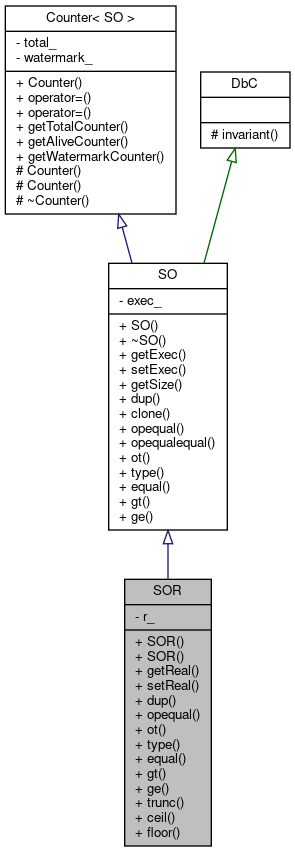

Inheritance diagram for SOR:

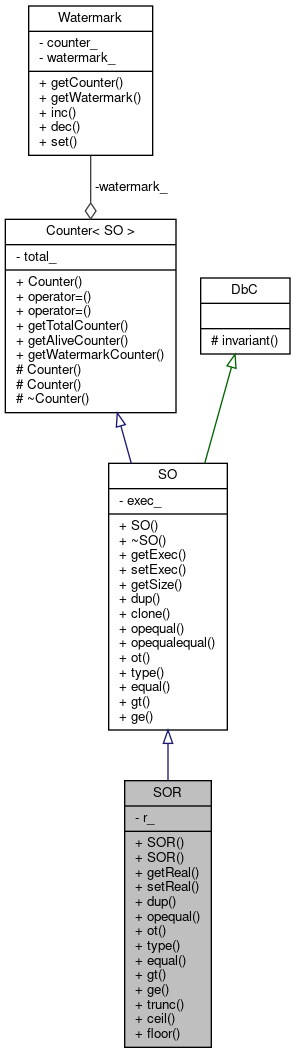

Collaboration diagram for SOR:

Public Member Functions
	SOR (const std::string &p_s)
	Ctor from a string representation.

	SOR (__float128 p_r)
	Ctor from a float.

	~SOR () override=default
	Dtor.

	SOR (const SOR &)=delete

	SOR (SOR &&)=delete

SOR &	operator= (const SOR &)=delete

SOR &	operator= (SOR &&)=delete

__float128	getReal () const
	Getter for real value.

bool	setReal (__float128 p_r)
	Setter for real value.

SOR *	dup () const override
	Creates a new instance as copy following the red book definition.

std::string	opequal () const override
	String representation of object for operators '=', 'cvs' and 'stack'. Reals are formated for output with a default precision of 10 digits.

OTCode	ot () const override
	Returns an OTCode.

std::string_view	type () const override
	Returns a type name.

bool	equal (const SO *p_other) const override
	Checks if this SO is equal to another SO.

bool	gt (OpError &p_ec, const SO *p_other) const override
	Greater than.

bool	ge (OpError &p_ec, const SO *p_other) const override
	Greater or equal.

void	half__1 ()
	In place half value.

OpError	sqr__1 ()
	In place square.

void	trunc__1 ()
	In place trunc().

void	ceil__1 ()
	In place ceil().

void	floor__1 ()
	In place floor().

OpError	reciprocal__1 ()
	In place reciprocal.

Public Member Functions inherited from SO
	SO ()
	Ctor.

	SO (bool p_exec)
	Ctor.

	SO (const SO &p_other)
	Copy ctor.

virtual	~SO ()=default
	Virtual dtor.

	SO (SO &&)=delete

SO &	operator= (const SO &)=delete

SO &	operator= (SO &&)=delete

bool	getExec () const
	Getter for exec_.

void	setExec (bool p_exec)
	Setter for exec_.

virtual size_t	getSize () const
	Returns the size of the SO.

virtual SO *	clone () const
	Creates a new instance as copy with deep cloning.

virtual std::string	opequalequal () const
	String representation for operators '==' and 'pstack'.

Public Member Functions inherited from Counter< SO >
	Counter (Counter< SO > &&)=delete

Counter< SO > &	operator= (const Counter< SO > &)=delete

Counter< SO > &	operator= (Counter< SO > &&)=delete

Protected Member Functions
bool	invariant () const noexcept override
	Checks class invariants.

Protected Member Functions inherited from Counter< SO >
	Counter ()
	Ctor.

	Counter (const Counter< SO > &)
	Copy ctor.

	~Counter ()
	Dtor.

Protected Member Functions inherited from DbC
	~DbC ()=default
	Protected dtor.

Private Attributes
__float128	r_
	The real value as decimal number.

Additional Inherited Members
Static Public Member Functions inherited from Counter< SO >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.

static size_t	getAliveCounter ()
	Static getter for objects alive.

static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.

Detailed Description

Semantic Object Real.

A real number as a quad-precision floating-point number adhering to the IEEE 754-2008 standard,
featuring a 112-bit significand and a 15-bit exponent.
This format offers at least 33 bits of precision.

Invariant: r_ is neighter +-Inf nor NaN.

Constructor & Destructor Documentation

◆ SOR() [1/2]

SOR::SOR ( const std::string & p_s )

inlineexplicit

Ctor from a string representation.

Precondition: p_s format is a valid IEEE 128 bit float.

Parameters

[in] p_s The string to parse as float.

◆ SOR() [2/2]

SOR::SOR ( __float128 p_r )

inlineexplicit

Ctor from a float.

Parameters

[in] p_r The float.

Member Function Documentation

◆ dup()

SOR * SOR::dup ( ) const

inlineoverridevirtual

Creates a new instance as copy following the red book definition.

Returns: SO * ... A copy.

Implements SO.

◆ equal()

bool SOR::equal ( const SO * p_other ) const

inlineoverridevirtual

Checks if this SO is equal to another SO.

Equality means:
SOL und SOM are always equal.
For SOD, SOF and SOK, share_ptr<> points to the same object.
For SOA, share_ptr<> points to the same object, but empty arrays are equal nonetheless.
For SOO and SOo the function pointer must be the same.
Otherwise the value must be the same, even for SOS with shared_ptr<>.

Precondition: parameter != nullptr

Returns: bool ... true if the SO's are of the same type and equal

See also: Will be used directly and unchanged as operator eq

Parameters

[in] p_other The object to compare with.

Implements SO.

◆ ge()

bool SOR::ge	(	OpError &	p_ec,
		const SO *	p_other
	)		const

inlineoverridevirtual

Greater or equal.

The redundancy between equal(), gt() and ge() is a matter of performance.

Parameters

[out] p_ec Error code.

Returns: bool ... true is comparable and ge.

Precondition: p_other != nullptr

Parameters

[in] p_other The object to compare with.

Reimplemented from SO.

◆ gt()

bool SOR::gt	(	OpError &	p_ec,
		const SO *	p_other
	)		const

inlineoverridevirtual

Greater than.

The redundancy between equal(), gt() and ge() is a matter of performance.

Parameters

[out] p_ec Error code.

Returns: bool ... true is comparable and gt.

Precondition: p_other != nullptr

Parameters

[in] p_other The object to compare with.

Reimplemented from SO.

◆ invariant()

bool SOR::invariant ( ) const

inlineoverrideprotectedvirtualnoexcept

Checks class invariants.

Returns: bool ... Indicates whether the class invariants are maintained.

Reimplemented from DbC.

◆ opequal()

std::string SOR::opequal ( ) const

overridevirtual

String representation of object for operators '=', 'cvs' and 'stack'. Reals are formated for output with a default precision of 10 digits.

The precision can be changed with the operator __rprecision.

Returns: std::string ... String representation of the real value.

Implements SO.

◆ ot()

OTCode SOR::ot ( ) const

inlineoverridevirtual

Returns an OTCode.

A "manual" implementation of polymorphism, where C++-polymorphisms fail

Returns: OTCode ... The OTCode of the instance.

Implements SO.

◆ reciprocal__1()

OpError SOR::reciprocal__1 ( )

inline

In place reciprocal.

Returns: OpError ...; - OpError::undefinedresult for real numbers too small to have a reciprocal.; - OpError::success otherwise.

◆ setReal()

bool SOR::setReal ( __float128 p_r )

inline

Setter for real value.

Parameters

[in] p_r The new float value.

Returns: bool ... true, if and only if p_r is neigther +-Inf nor NaN.

◆ sqr__1()

OpError SOR::sqr__1 ( )

inline

In place square.

Returns: OpError ... undefinedresult for r_^2 > maximum __float128, success otherwise

◆ type()

std::string_view SOR::type ( ) const

inlineoverridevirtual

Returns a type name.

Returns: std::string_view ... The type name of the instance.

Implements SO.

The documentation for this class was generated from the following files:
