SOQ Class Reference

Semantic Object Rational Number. More...

#include <soq.h>

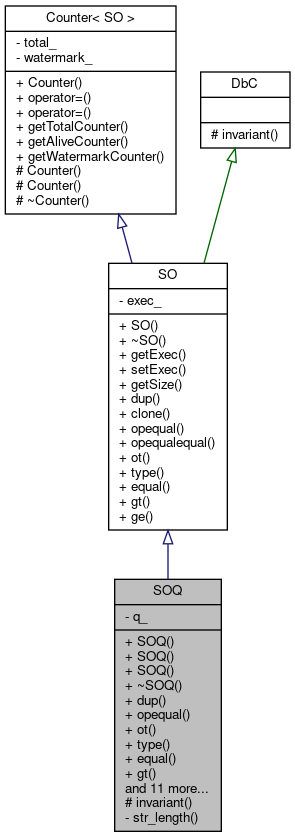

Inheritance diagram for SOQ:

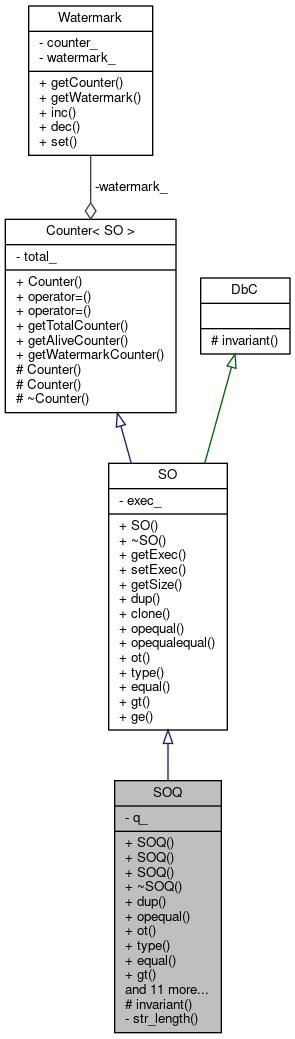

Collaboration diagram for SOQ:

Public Member Functions
	SOQ ()
	Ctor.
	SOQ (std::string &p_s)
	Ctor from a string representation.
	SOQ (const mpq_t p_q)
	Ctor from a mpq_t.
	SOQ (const __int128 p_num, const __int128 p_den)
	Ctor from a numerator and a denominator.
	~SOQ () override
	Dtor.
	SOQ (const SOQ &)=delete
	SOQ (SOQ &&)=delete
SOQ &	operator= (const SOQ &)=delete
SOQ &	operator= (SOQ &&)=delete
SOQ *	dup () const override
	Creates a new instance as copy following the red book definition.
std::string	opequal () const override
	String representation of object for operators '=', 'cvs' and 'stack'.
OTCode	ot () const override
	Returns an OTCode.
std::string_view	type () const override
	Returns a type name.
bool	equal (const SO *p_other) const override
	Checks if this SO is equal to another SO.
bool	gt (OpError &p_ec, const SO *p_other) const override
	Greater than.
bool	ge (OpError &p_ec, const SO *p_other) const override
	Greater or equal.
void	getRational (mpq_t p_q) const
	Getter for q_.
void	setRational (const mpq_t p_q)
	Setter for the rational number.
void	getNumerator (mpz_t p_z) const
	Getter for the numerator of q_.
void	setNumerator (mpz_t p_z)
	Setter for the numerator of q_.
bool	getComponents (__int128 &p_num, __int128 &p_den) const
	Getter for numerator and denominator.
bool	isunitfraction () const
	Checks numerator == 1.
bool	isinteger () const
	Checks denominator == 1.
void	divqr (mpq_t p_q, mpq_t p_r) const
	Calculates quotient and remainder.
bool	parse (std::string &p_str)
	Parses a string representation of a rational number.
void	abs__1 ()
	In place abs.
void	neg__1 ()
	In place neg.
void	sqr__1 ()
	In place sqr.
void	half__1 ()
	In place half value.
void	reciprocal__1 (OpError &p_ec)
	In place reciprocal.
__float128	float128 (OpError &p_ec) const
	Converts the rational number to a real number.
Public Member Functions inherited from SO
	SO ()
	Ctor.
	SO (bool p_exec)
	Ctor.
	SO (const SO &p_other)
	Copy ctor.
virtual	~SO ()=default
	Virtual dtor.
	SO (SO &&)=delete
SO &	operator= (const SO &)=delete
SO &	operator= (SO &&)=delete
bool	getExec () const
	Getter for exec_.
void	setExec (bool p_exec)
	Setter for exec_.
virtual size_t	getSize () const
	Returns the size of the SO.
virtual SO *	clone () const
	Creates a new instance as copy with deep cloning.
virtual std::string	opequalequal () const
	String representation for operators '==' and 'pstack'.
Public Member Functions inherited from Counter< SO >
	Counter (Counter< SO > &&)=delete
Counter< SO > &	operator= (const Counter< SO > &)=delete
Counter< SO > &	operator= (Counter< SO > &&)=delete

Protected Member Functions
bool	invariant () const noexcept override
	Checks class invariants.
Protected Member Functions inherited from Counter< SO >
	Counter ()
	Ctor.
	Counter (const Counter< SO > &)
	Copy ctor.
	~Counter ()
	Dtor.
Protected Member Functions inherited from DbC
	~DbC ()=default
	Protected dtor.

Private Member Functions
size_t	str_length () const
	Calculates an upper limit of the maximum length of the string representation of q_.
bool	parse_work (std::string &p_str)
	Parses a string representation of a rational number.

Private Attributes
mpq_t	q_ {}
	The rational number by GMP.

Additional Inherited Members
Static Public Member Functions inherited from Counter< SO >
static size_t	getTotalCounter ()
	Static getter for totaly created objects.
static size_t	getAliveCounter ()
	Static getter for objects alive.
static size_t	getWatermarkCounter ()
	Static getter for the object counter watermark.

Detailed Description

Semantic Object Rational Number.

A multiple precicion rational number.

Invariant

denominator > 0

gcd of numerator and denominator == 1

Constructor & Destructor Documentation

SOQ() [1/3]

SOQ::SOQ ( std::string &  p_s )

inlineexplicit

Ctor from a string representation.

Precondition

p_s format is a valid rational number: [+-]?[0-9]+:[0-9]+ but not [+-]?[0-9]:0+

Parameters

[in]

p_s

The string to parse as rational number.

SOQ() [2/3]

SOQ::SOQ ( const mpq_t  p_q )

inlineexplicit

Ctor from a mpq_t.

Parameters

[in]

p_q

The value to be used.

SOQ() [3/3]

SOQ::SOQ ( const __int128  p_num, const __int128  p_den  )

inline

Ctor from a numerator and a denominator.

Precondition

p_den != 0

Parameters

[in]	p_num	The numerator of the rational number.
[in]	p_den	The denominator of the rational number.

Member Function Documentation

divqr()

void SOQ::divqr ( mpq_t  p_q, mpq_t  p_r  ) const

inline

Calculates quotient and remainder.

Parameters

[out]	p_q	The quotient as rational number with denominator 1.
[out]	p_r	The remainder as rational number 0<=Q<1 thus a proper fraction.

dup()

SOQ * SOQ::dup ( ) const

inlineoverridevirtual

Creates a new instance as copy following the red book definition.

Returns

SO * ... A copy.

Implements SO.

equal()

bool SOQ::equal ( const SO *  p_other ) const

inlineoverridevirtual

Checks if this SO is equal to another SO.

Equality means:
SOL und SOM are always equal.
For SOD, SOF and SOK, share_ptr<> points to the same object.
For SOA, share_ptr<> points to the same object, but empty arrays are equal nonetheless.
For SOO and SOo the function pointer must be the same.
Otherwise the value must be the same, even for SOS with shared_ptr<>.

Precondition

parameter != nullptr

Returns

bool ... true if the SO's are of the same type and equal

See also

Will be used directly and unchanged as operator eq

Parameters

[in]

p_other

The object to compare with.

Implements SO.

float128()

__float128 SOQ::float128

(

OpError &

p_ec

)

const

Converts the rational number to a real number.

Postcondition

The result is finit.

Parameters

[out]

p_ec

OpError::success or an error code of the conversion.

Returns

__float128 ... The representation as R.

ge()

bool SOQ::ge ( OpError &  p_ec, const SO *  p_other  ) const

inlineoverridevirtual

Greater or equal.

The redundancy between equal(), gt() and ge() is a matter of performance.

Parameters

[out]

p_ec

Error code.

Returns

bool ... true is comparable and ge.

Precondition

p_other != nullptr

Parameters

[in]

p_other

The object to compare with.

Reimplemented from SO.

getComponents()

bool SOQ::getComponents ( __int128 &  p_num, __int128 &  p_den  ) const

inline

Getter for numerator and denominator.

Parameters

[out]	p_num	Gets the the numerator of q_ converted into __int128.
[out]	p_den	Gets the the denominator of q_ converted into __int128.

Returns

bool ... true if the components of the fraction fit into __int128.

getNumerator()

void SOQ::getNumerator ( mpz_t  p_z ) const

inline

Getter for the numerator of q_.

Parameters

[out]

p_z

Gets the the numerator of q_

getRational()

void SOQ::getRational ( mpq_t  p_q ) const

inline

Getter for q_.

Parameters

[out]

p_q

Gets the value of q_

gt()

bool SOQ::gt ( OpError &  p_ec, const SO *  p_other  ) const

inlineoverridevirtual

Greater than.

The redundancy between equal(), gt() and ge() is a matter of performance.

Parameters

[out]

p_ec

Error code.

Returns

bool ... true is comparable and gt.

Precondition

p_other != nullptr

Parameters

[in]

p_other

The object to compare with.

Reimplemented from SO.

invariant()

bool SOQ::invariant ( ) const

inlineoverrideprotectedvirtualnoexcept

Checks class invariants.

Returns

bool ... Indicates whether the class invariants are maintained.

Reimplemented from DbC.

isinteger()

bool SOQ::isinteger ( ) const

inline

Checks denominator == 1.

Returns

bool ... true, if denominator == 1.

isunitfraction()

bool SOQ::isunitfraction ( ) const

inline

Checks numerator == 1.

Returns

bool ... true, if numerator == 1.

opequal()

std::string SOQ::opequal ( ) const

overridevirtual

String representation of object for operators '=', 'cvs' and 'stack'.

Returns

std::string ... The representation.

Implements SO.

ot()

OTCode SOQ::ot ( ) const

inlineoverridevirtual

Returns an OTCode.

A "manual" implementation of polymorphism, where C++-polymorphisms fail

Returns

OTCode ... The OTCode of the instance.

Implements SO.

parse()

bool SOQ::parse ( std::string &  p_str )

inline

Parses a string representation of a rational number.

Accepts two integers separated by a ':' or a '/'.
Accepts a single integer without delimiting characters.
Ignores whitespaces completely.

Parameters

[in]

p_str

The string to parse.

Returns

bool ... true if parsing succeeds

parse_work()

bool SOQ::parse_work ( std::string &  p_str )

private

Parses a string representation of a rational number.

Accepts two integers separated by a ':' or a '/'.
Accepts a single integer without delimiting characters.
Ignores whitespaces completely.

This function is separated from parse() to allow a call from the ctor.

Parameters

[in]

p_str

The string to parse.

Returns

bool ... true if parsing succeeds

reciprocal__1()

void SOQ::reciprocal__1 ( OpError &  p_ec )

inline

In place reciprocal.

Parameters

[out]

p_ec

Success or error code.

setRational()

void SOQ::setRational ( const mpq_t  p_q )

inline

Setter for the rational number.

str_length()

size_t SOQ::str_length ( ) const

inlineprivate

Calculates an upper limit of the maximum length of the string representation of q_.

Returns

size_t ... The maximum size.

type()

std::string_view SOQ::type ( ) const

inlineoverridevirtual

Returns a type name.

Returns

std::string_view ... The type name of the instance.

Implements SO.

Member Data Documentation

q_

mpq_t SOQ::q_ {}

private

The rational number by GMP.

The initialization is a dead store.

---

The documentation for this class was generated from the following files:

• soq.h
• soq.cpp
